Create a stacked bar chart where the categories along the y-axis are made up of the rows in the table. Significance tests, shown as arrows, are added automatically.
Technical details
Description
This is a legacy chart and not R-based. See Visualization - Bar - Stacked Bar for the R-based version that can also show tests, and has more customization options.
Data/Inputs
Variables or a table with more than one column.
Appearance
Data Labels
Significance Choose to apply Significance testing. Options include No, Arrows, Font colors, Arrows and Font colors (default), Compare columns. Select Advanced to access Advanced Statistical Testing Assumptions.
Decimals Select to show fewer or more decimal places.
Number format Select to change the format to a percentage symbol or a currency symbol.
Modify output labels Select to rename statistics or other labels (e.g., NET, Sum) for this output or for the whole Document.
Caption
Show Below Select to show the caption below the Visualization.
Set as default Select to apply the caption settings as a default for new Visualizations.
Reset Select to revert the changes to default caption settings.
Edit Select to access Caption options.
PowerPoint Export
Format Select Image (default) or Microsoft Chart.
Export as Select Match Displayr or a desired PowerPoint chart type.
Set as default Select to apply the PowerPoint Export settings as a default for new Visualizations.
Reset: Select to revert the changes to default PowerPoint Export settings.
Excel Export
Format Select Table (default) or Table with Chart.
Excel Chart Type Select Match Displayr or a desired PowerPoint chart type.
Set as default Select to apply the Excel Export settings as a default for new Visualizations.
Reset Select to revert the changes to default Excel Export settings.
PowerPoint Update
Update Chart Title Select to update the chart title when updating PowerPoint charts or tables. Deselect to keep the existing title.
Update Chart Axis Title Select to update the chart Axis Title when updating PowerPoint charts. Deselect to keep the existing title.
Update Table Row Headings Select to update table row headings when updating PowerPoint charts or tables. Deselect to keep the existing headings.
Update Table Column Headings Select to update table columns headings when updating PowerPoint charts or tables. Deselect to keep the existing headings.
Update Chart Data Labels Select to update chart data labels. Deselect to keep the existing data labels.
Layout
Left Set the position of the Visualization (in pixels) from left side of the page.
Top Set the position of the Visualization (in pixels) from top of the page.
Width Set width of the Visualization (in pixels).
Height Set height of the Visualization (in pixels).
Chart tab
To access the Chart tab, select the Visualization object, or click on the part of the Visualization you wish to edit (e.g., the data series, Y-Axis, Legend, etc.)
Background
Background color Choose the background color of the visualization.
Bar Gap
Gaps between bars/columns Set the size of the gap between bars and columns.
Data Labels
Label points Select to show the data point labels.
Only show labels that fit Select to only show labels that fit.
Point labels font Sets data labels font family, size, style, and color.
Data Series
All Series Choose to format all series at once, or select one series to format individually.
Chart as Choose to chart the selected Data Series as Stacked Column.
Color Choose data series color.
Label points Select to show the data point values of the selected data series.
Only show labels that fit Select to only show labels that fit.
Point labels font Sets point labels font family, size, style, and color.
Label frequency Set the frequency of the label appearing (e.g., 1 = shows all labels, 2 = shows every second label...).
Show Border Select to show data bars borders.
Border Width Set border width in pixels.
Border color Choose the data bar border color.
Use pattern Select to show a data bar pattern.
Pattern Select the data bar pattern.
Other pattern color Choose the data bar pattern color. Options include: Horizontal, Vertical, Forward diagonal, Cross, Percent 50, Light vertical, Small confetti, Zig zag, and more.
Font
Chart font Sets chart font family, size, style, and color.
Legend
Legend Select Hidden to remove the legend, or choose between Block and Individual styles.
Font Sets legend font family, size, style, and color.
Stacked Totals
Show stack totals Select to show the stack total.
Title
Show Title Select to show the Chart Title.
Font Sets title font family, size, style, and color.
X Axis
Show X Axis Select to show X Axis.
Axis labels font Sets X axis font family, size, style, and color.
Axis title Enter X axis title.
Axis title font Sets X axis title font family, size, style, and color.
Show labels Select to show X axis labels.
Show axis line Select to show X axis line.
Y Axis
Show Y Axis Select to show Y Axis.
Axis labels font Sets Y axis font family, size, style, and color.
Axis title Enter Y axis title.
Axis title font Sets Y axis title font family, size, style, and color.
Show labels Select to show Y axis labels.
Show axis line Select to show Y axis line.
Output

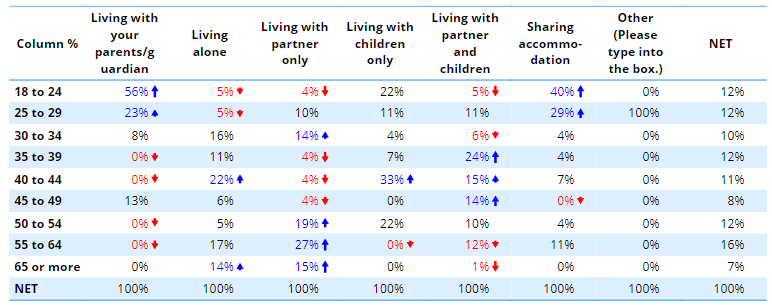

Using this table as input:
Looks like:
